Processor type: Intel
Processor family: 5th Gen Intel® Xeon® Scalable Processors and 4th Gen Intel® Xeon® Scalable Processors
Processor number: 1 or 2
Processor core available: 16 to 60 core, depending on processor
Processor speed: 5.8 GHz, maximum depending on processor
Processor cache: Up to 16 MB Intel® Smart Cache, depending on processor

Memory

Maximum memory: 8 TB with 256 GB DDR5
Memory slots: 32
Memory type: HPE DDR5 Smart Memory
Memory protection features: RAS – Advanced ECC, online spare, mirroring, combined channel (lockstep) functionality, and HPE Fast Fault Tolerant Memory (ADDDC); Intel Optane Persistent Memory

Drive supported

8 or 12 LFF SAS/SATA/SSD 8, 16, or 24 SFF SAS/SATA/SSD, depending on configuration. 6 SFF rear drive optional or or 2 SFF rear-drive optional, 20 SFF NVMe optional, NVMe support via Express Bay will limit maximum drive capacity, depending on model.

Infrastructure management

HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE GreenLake COM

Power supply type

800W, 1000W, or 1600W Dual hot-plug redundant 1+1 HPE Flexible Slot Power Supplies, depending on model

Expansion slots

Up to 8 PCIe Gen5, and 2 OCP 3.0, for detailed descriptions reference the QuickSpecs

Network controller

1 Gb, 10 Gb, 10/25 Gb, 100 Gb, or 200 Gb, in PCIe adapter or OCP 3.0 form factor, for detailed descriptions reference the QuickSpecs

Storage controller

HPE SR932i-p and/or HPE MR216i-o and/or HPE MR416i-o and/or HPE MR216i-p and/or HPE MR416i-p and/or HPE MR408i-o, for detailed descriptions reference the QuickSpecs

Form factor

2U Rack

Dimensions

SFF CTO servers: 8.75 x 44.8 x 72.7. cm
LFF CTO servers: 8.75 x 44.8 x 73.25 cm

Weight

Maximum: 8 SFF hard drives (no rear drives), 2x processors, 2x power supplies, 1x RAID controller, 2x Risers installed) -
Maximum: 33kg/72.75 lbs. -
Minimum: 16kg/35.27 lbs.

Maximum: 12LFF hard drives (no rear drives), 2x processors, 2x power supplies, 1x RAID controller, 2x Risers installed) -
Maximum: 37kg/81.57 lbs. -
Minimum: 18kg/39.68 lbs.

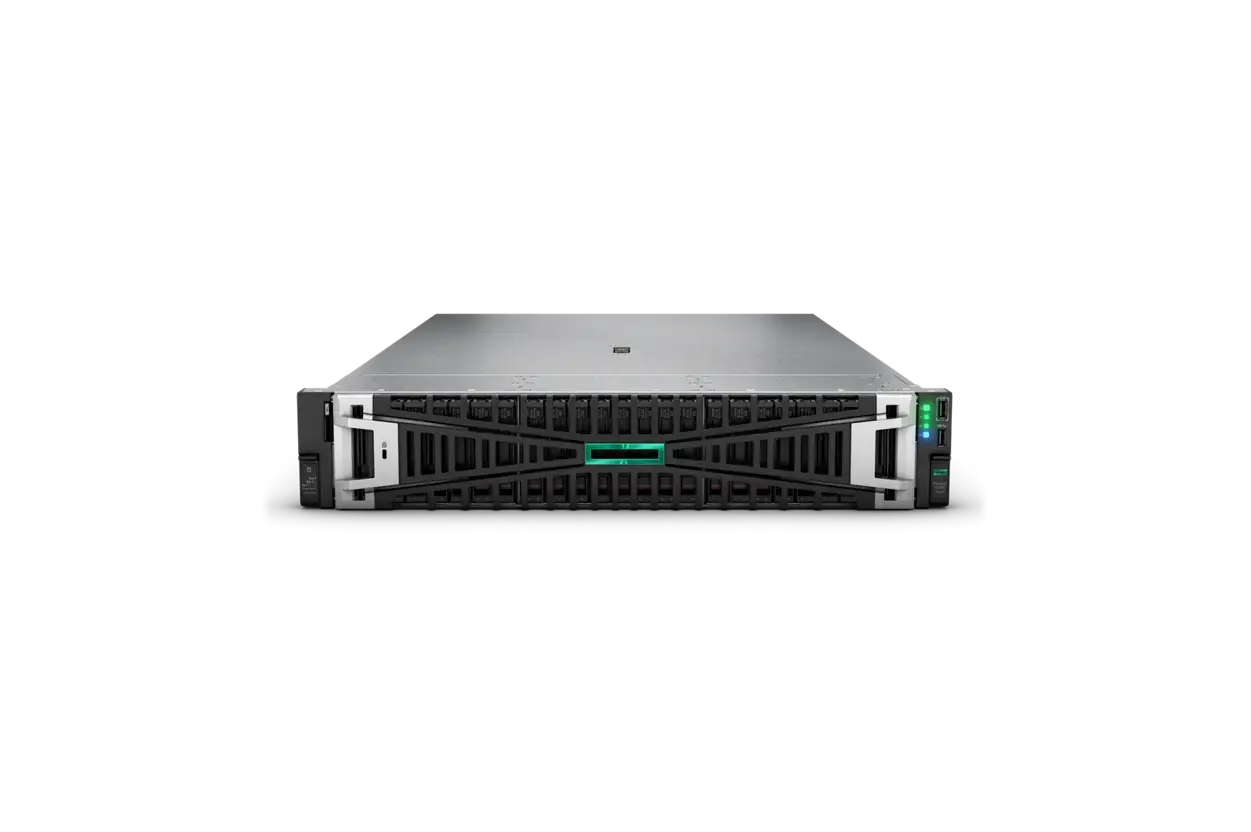

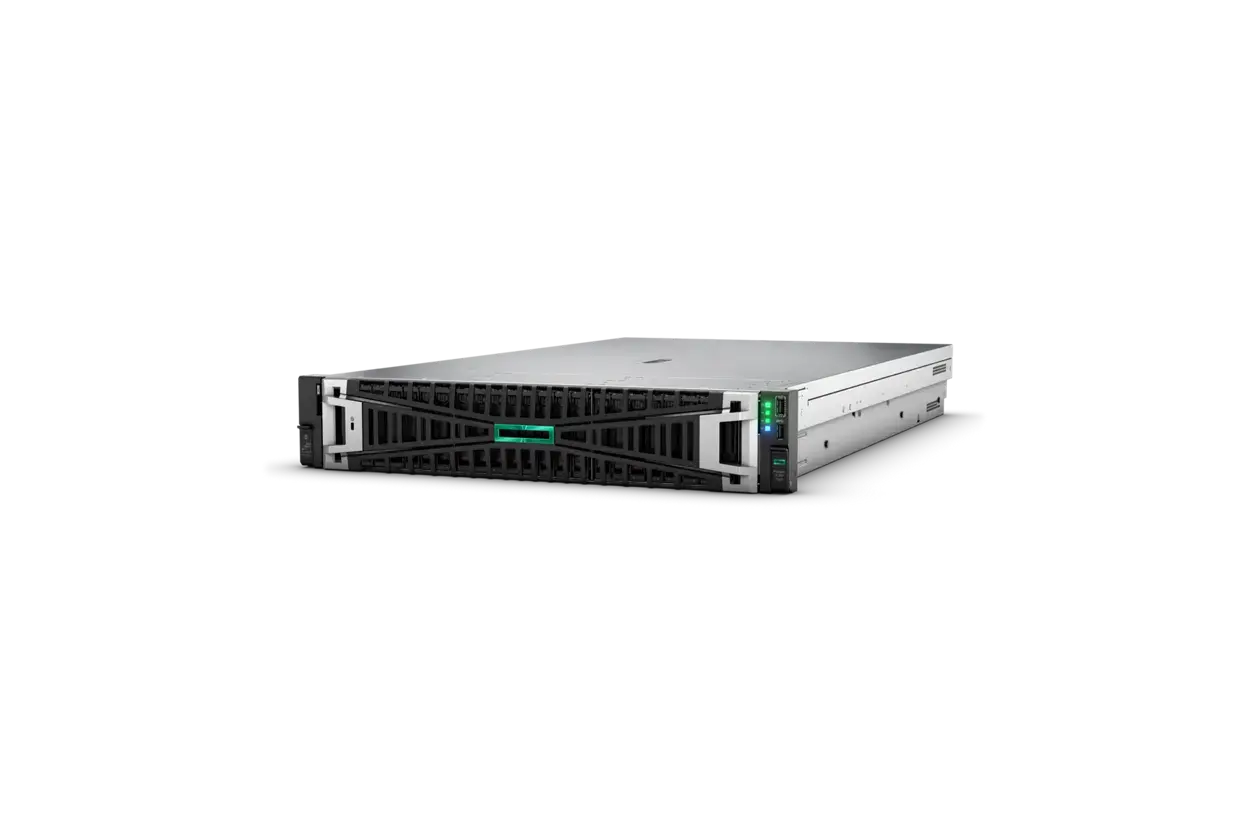

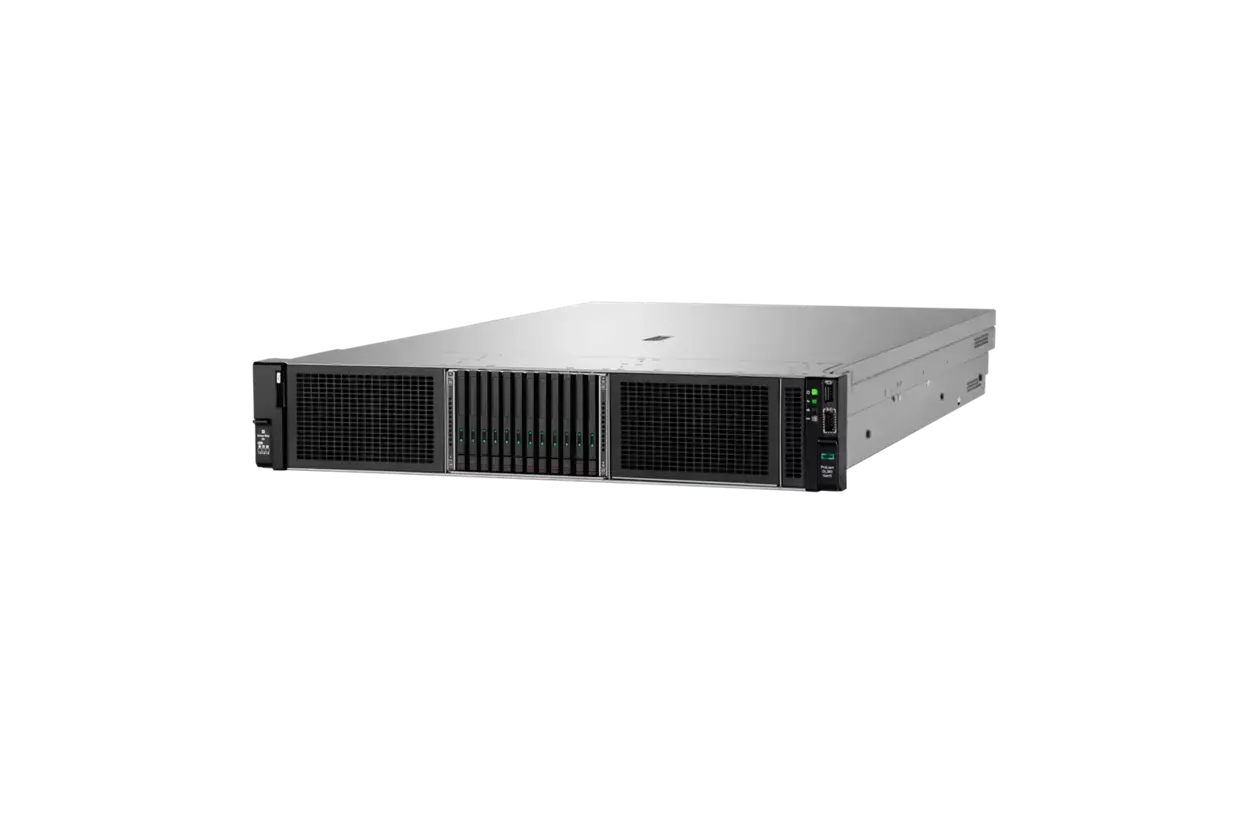

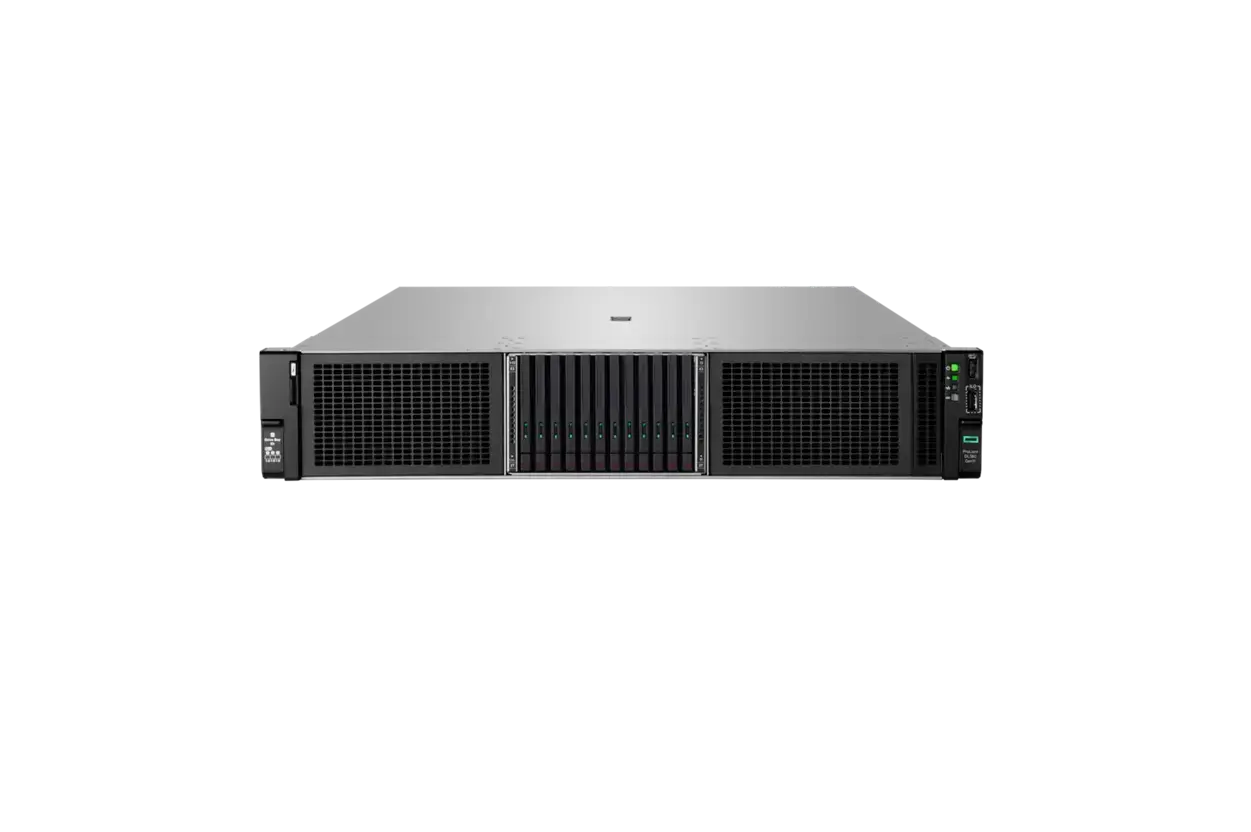

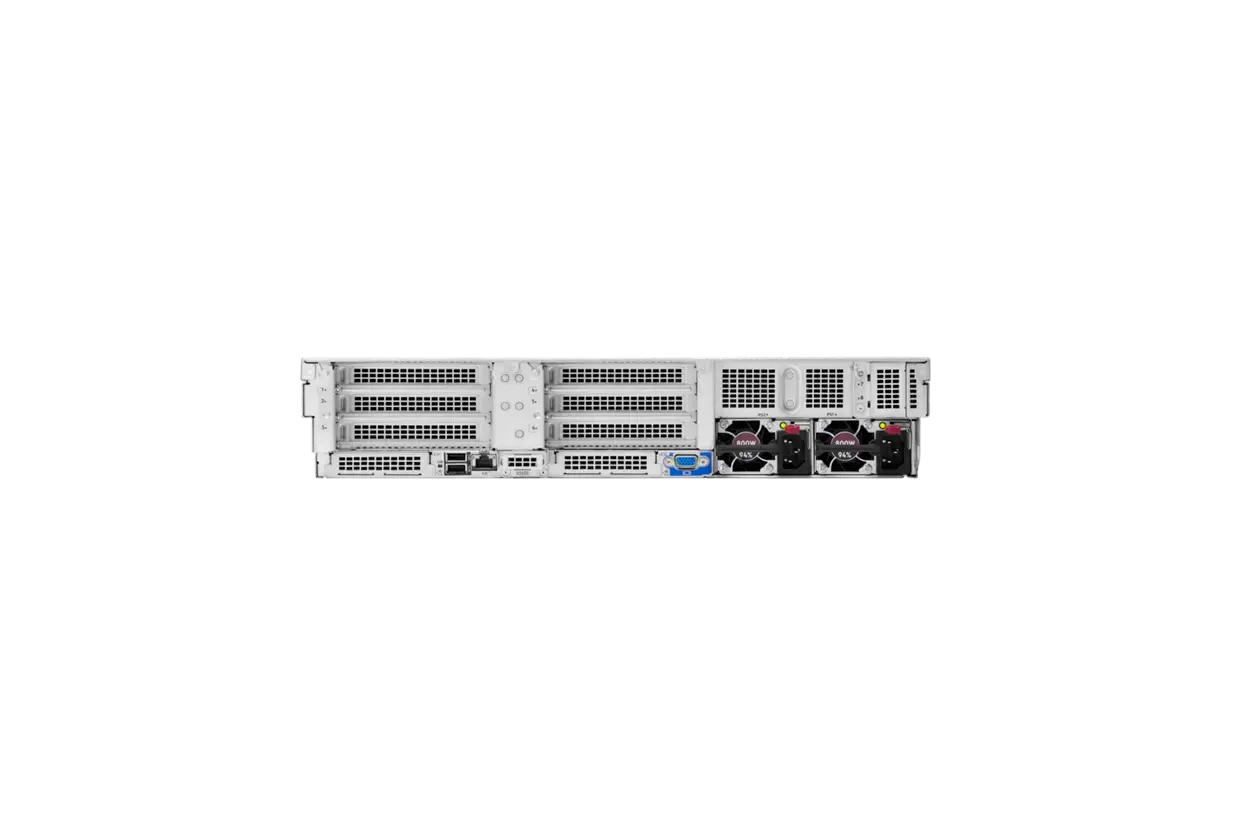

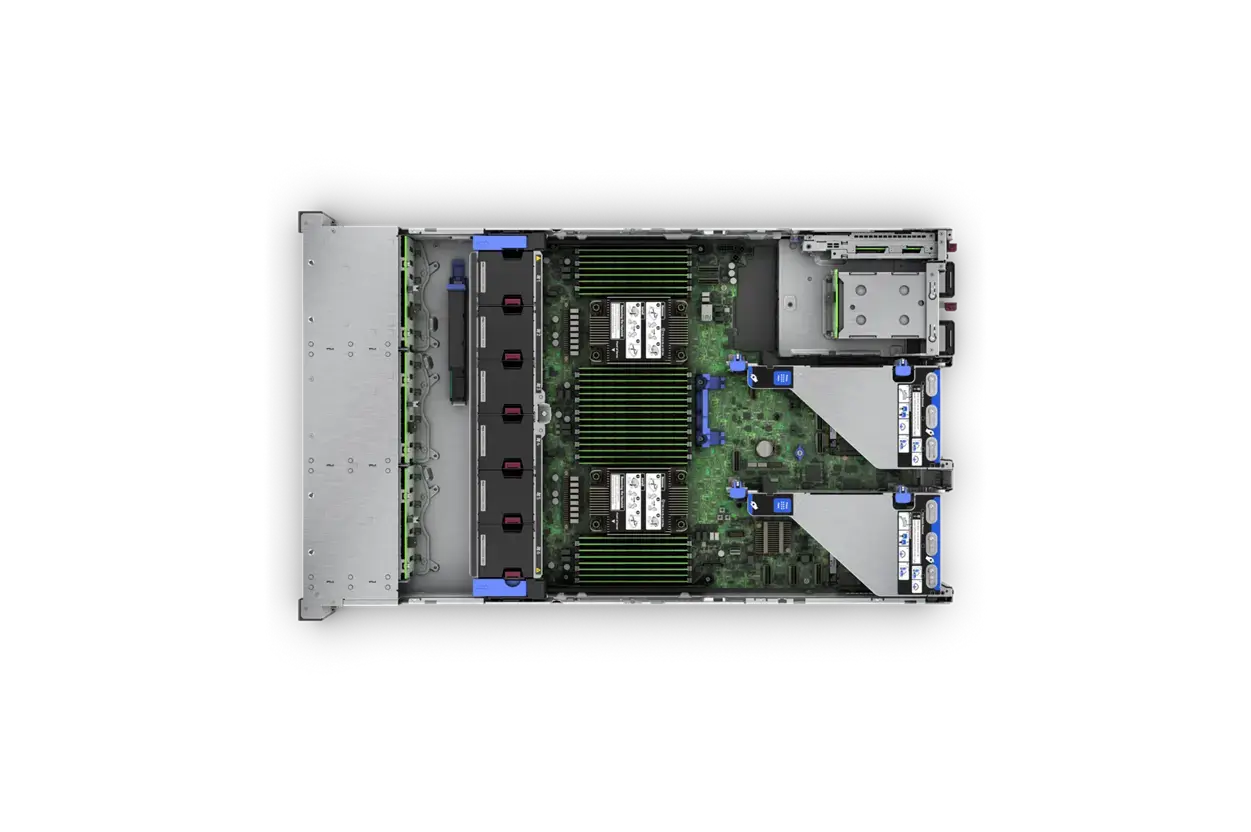

HPE DL380 Gen11 Server

Frequently
asked
questions

Got your own question?
Ask to consultant

What is included in the 5-year warranty for the HPE DL380 Gen11 Server?

The Servermall warranty includes:

Access on a 24x7 basis (including holidays) to the Servermall Customer Service and Support organization for troubleshooting assistance of Servermall Refurbished Servers and Associated Goods and select software issues.
5 year warranty. In case of problem diagnostics or repair, we will do on the server installation site. For free.
On-site dispatch of replacement parts to the Installation Site or other mutually agreed upon Customer’s business location approved by Servermall to address a Product problem.

How to get a discount on the HPE DL380 Gen11 Server?

Subscribe to our news and get a 212 AED discount on the server.

Subscribe to the news

What are the terms of delivery of the HPE DL380 Gen11 Server?

Free shipping across the UAE, GCC and the Maghreb if ordering equipment from 2200 AED. Delivery from 4 working days.
